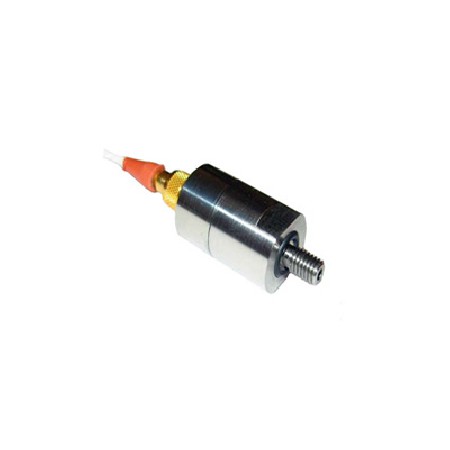

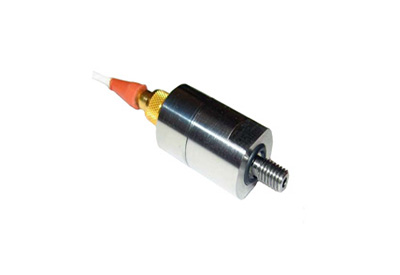

產品詳情：EPXN壓力傳感器

        The EPXN is a high performance small pressure sensor using silicon chip for clean media (non corrosive). With it's recessed port, it is best recommended for static applications or low frequency. Available with 10-32UNFor M5 thread,EPXN is available with a cable or integral connector.Offered in pressure ranges from 5 to 150 psi (0.3 to 10 bar),vented and absolute pressure. Various compensated temperature ranges are available from -40°C up to 90°C. The sensor is offered with an amplified or unamplified output.

類        型： 高頻壓力傳感器
量        程： 0～0.3,1,2,5,10BAR
非  線  性： ±0.3～0.5%FSO
輸        出： 50～75mV，5V
供電電源： 15VDC,±15VDC，24～32VDC
電氣連接： 電纜
工作溫度： -40℃～120℃
特        點： 長期穩定性好，小螺紋，凹入式硅壓阻膜片
典型應用： 靜態壓力監測，衛星，大氣飛行器測試
