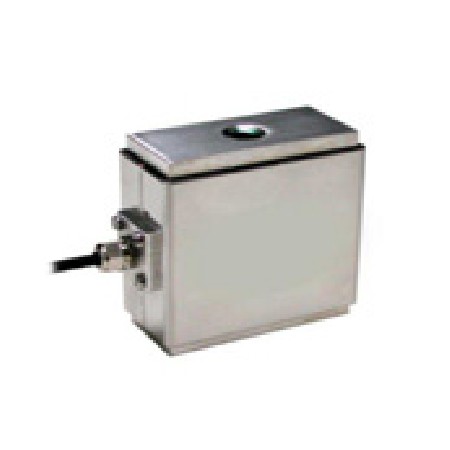

The FN3148 high precision load cell is protected against accidental overloads in tension and compression.

        High-level outputs are available with amplifier A1 or A2 integration.

        For lower ranges, another sensor, model FN3280, can measure 0-1 N to 0-5 N [0.2 lbf to 1 lbf].

        To meet your needs we also offer extensive turnkey systems. The matched components (sensor, power, amplifier and digital display) are formatted, calibrated and ready for immediate use.

        On request, Instruction documents can be provided to ease the selection and use of our sensors and provide helpful tips.

封        裝：S型懸臂梁帶過載限位

量        程：10～2KN（2～400Lbf）
非  線   性：<±0.05%FS
輸        出：±20mV（4V；±5V可選）
工作模式：拉力和壓力
工作溫度：-40～120℃
特        點：高精度，高分辨率，機械限位
典型應用：產品驗證測試，醫療設備，稱重
